SMF Series

Compressed Air Filter

SMF Series Features

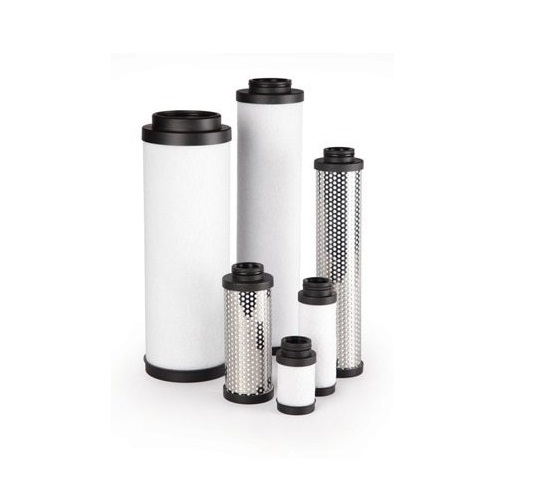

Coalescing Filters (X and Y models) are probably the most important items of purification requirements in a compressed air system, which are designed not only to filter oil vapor and water, but also to filter solid particulates to an acceptable level as small as 0.01 micron in size.
Usually, in the installation system, the first filter’s purpose is to pre-filter, protect the high efficiency filters from bulk contamination so as to provide high quality compressed air.
If the air filters worked under damp or full of water adsorption condition, it would prevent the compressed air from getting through the filter element, and the air flow would force the liquid to get through from the pores of the element media, thus increase working pressure drop and reduce filtration performance.

Activated Carbon Filters

Oil vapor can easily get through the coalescing filters in a state of gaseous, so the adsorptive filter (A model) must provide large activated carbon adsorption bed.
Because the damp air will reduce the adsorptive ability of the activated carbon, the adsorptive filter usually installed after the adsorptive dryer, in order to guarantee effective removal of oil vapor and peculiar odor. It’s not used to remove the liquid oil or aerosols, thus poor maintenance and lack of pre-filter will accelerate its invalidation.

Benefits

• The filter housing is aluminum alloy die-casting with tight, strong structure and long life span.
• Smaller and compact filter due to the advance filter element designing idea.
• The filter housing’s service life is 15 years, and the filter element can be used for 6000~8000 hours.
• Under working environment from temperature 1.5~80 ˚C.
• The housing can burst 1.6 Mpa pressure.
